SPECIFICATIONS

Accessory Type: GPS WiFi 4G antenna

Brand Name: TEyes

Built-in CD player: No

Built-in DVD Player: No

Built-in Screen: Yes

Category: ARM

Certification: CE,EAC,FCC,pse,weee

Chipset: SM6115

Digital Media Format: Mp3,MP4,WMA,JPEG

Din: One Din

Display Size: 9"

For Vehicle Brands/Model: Honda

High-concerned chemical: None

Interface: USB 3.0

Is touch screen: Yes

Item Size: 9.0 inch

Item Weight: 1.5

Material: PCB + hardware + screen

OSD Language: Chinese (Simplified),Chinese (Traditional),Russian,French,German,Japanese,Spanish,English

Operating System: Android

Origin: Mainland China

Out Power: 4*45W

Output Type: Colored

Preset Station: YES

Processor Speed: 2.0GHz

Processor Type: 8 cores

RAM: 6G

ROM: 64G

Resolution: 1280*720

Special Features: wifi function,Support 3G Network,Support 4G Network,Support Can-Bus,Built-in GPS,Mobile Phone,MP3 players,Voice Control,CarPlay,android auto,Reversing Input,Split Screen,Remote Controller Included,Support steering wheel control

TF/Micro SD Slot: 1

Tuner Type: FM AM

Voltage: 12 V

Warranty: 12

NOTE: There has been 2 instances where the hazard button "failed". However factory reseting the device has rectified it.

NOTE: If you have an OEM amplifier, you must connect the blue AMP cable to G3 accessories, or to the blue AMP-C (if you have it) for the amplifier to turn on, otherwise you will not have sound.

NOTE: If you want steering phone controls, then G7 needs to be connected to the vehicle side in order for it to be mapped and working. This is common for most canbus controllers not supporting analogue side of steering controls.

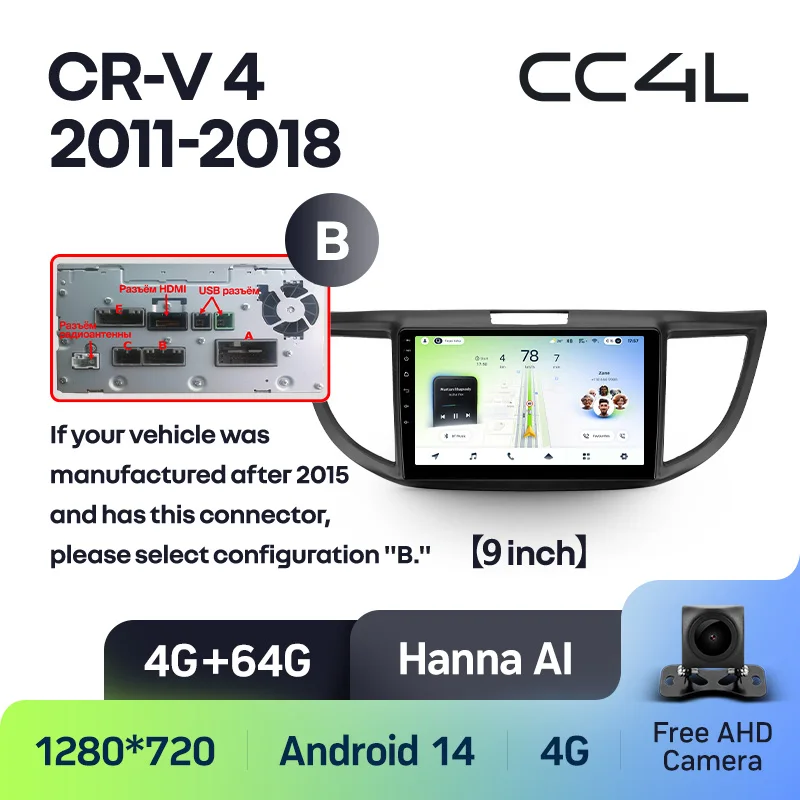

Canbus Setting for B - RZC --> HONDA --> CRV --> 2015

WARNING: If you have a Bose sound system, you may need to change the audio outputs from the G plug to the L port so that you have unamplified signals going to the amplifer or you may get buzzing or hissing sounds from the speakers. Do not purchase if you don't intend on making this modification.
