SPECIFICATIONS

Accessory Type: GPS WiFi 4G antenna

Brand Name: TEyes

Built-in CD player: No

Built-in DVD Player: No

Built-in Screen: Yes

Certification: CE,EAC,FCC,pse,weee

Chipset: SM6115

Digital Media Format: Mp3,MP4,WMA,JPEG

Din: One Din

Display Size: 9"

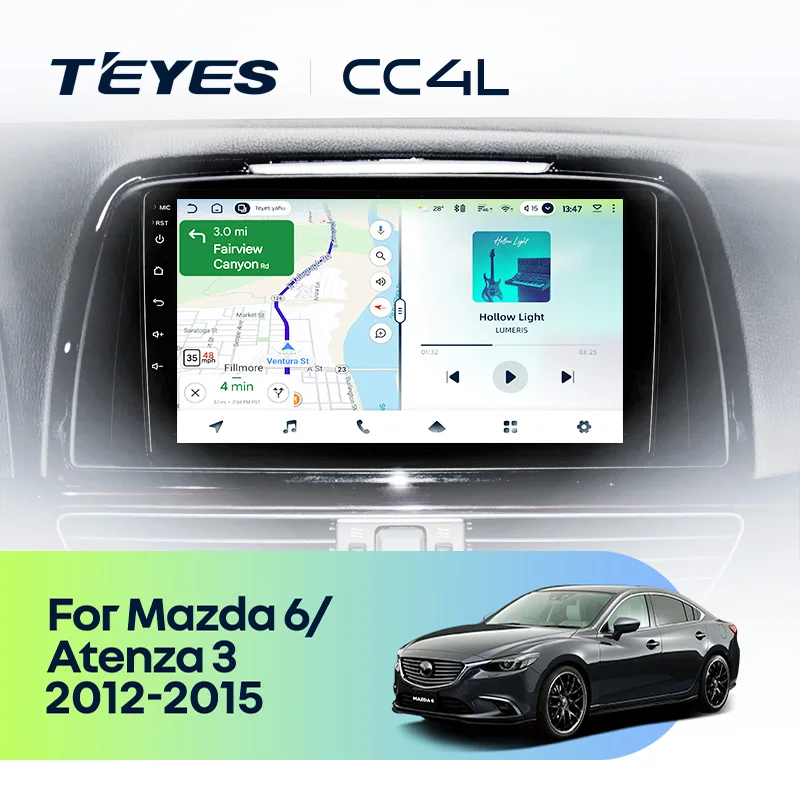

For Vehicle Brands/Model: MAZDA

High-concerned chemical: None

Interface: USB 3.0

Is touch screen: Yes

Item Size: 9.0 inch

Item Weight: 1.5

Material: PCB + hardware + screen

OSD Language: Chinese (Simplified),Chinese (Traditional),Russian,English,French,German,Korean,Japanese,Spanish,Italian

Operating System: Android

Out Power: 4*45W

Output Type: Colored

Preset Station: YES

Processor Speed: 2.0GHz

Processor Type: 8 cores

RAM: 6G

ROM: 64G

Resolution: 1280*720

Special Features: wifi function,Support 3G Network,Support 4G Network,Support Can-Bus,Built-in GPS,Mobile Phone,MP3 players,Voice Control,CarPlay,android auto,Reversing Input,Split Screen,Remote Controller Included,Support steering wheel control

TF/Micro SD Slot: 1

Tuner Type: FM AM

Voltage: 12 V

Warranty: 12

NOTE: After market interior LEDs can cause screen flicker and dimming issues. Please especially check for LED in the globe box.

NOTE: Supports Bose audio, if you experience hissing please see here

NOTE: Some buzzing has been attributed to the OEM USB Mazda retention cable. Try to disconnect to test.

NOTE: If you have amplifier, connect the Blue AMP and Blue AMP-C wires together to engage the amplifier or you will not get sound. Make sure in the sound settings that AMP is selected to the ON position.

If this does not output 12VDC on BLUE AMP-C wire, Connect the BLUE AMP cable to G3 accessories instead.

Mazda B option 24Pin plug pinout (here)

NOTE: Supports center controller

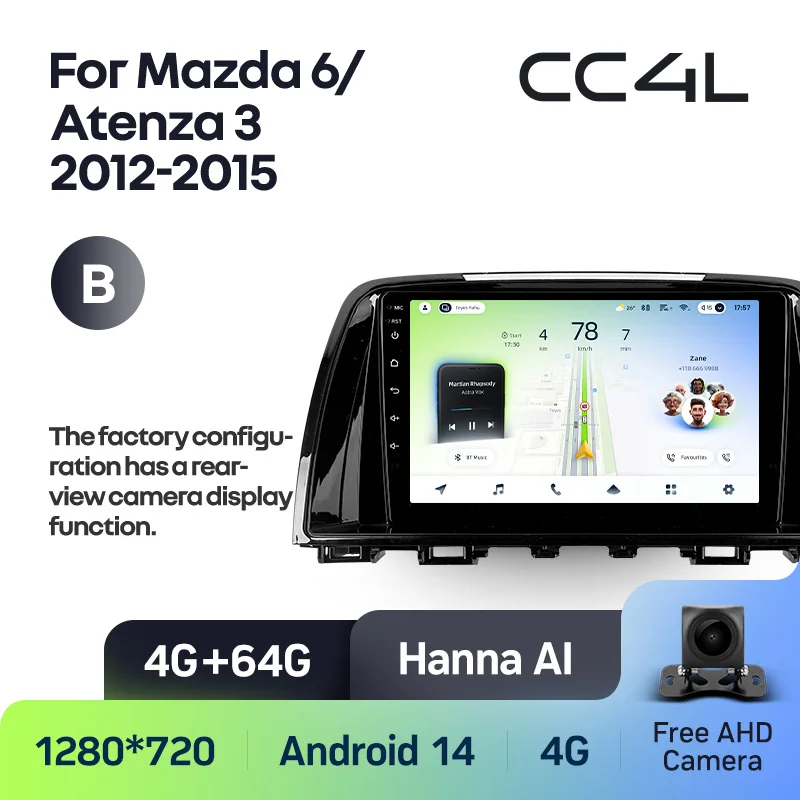

NOTE: The below head unit is supported and should select option B



For this head unit uses LK 220418 -XP harness



NOTE: For this head unit uses LK 220418 -XP harness HOWEVER the steering controls are not supported. You will need to try make your own modification to get them to work. We do not have a solution for this yet
